Farmhouse Console Table

Buy straight, dry boards. The source stock list is below; confirm local board sizes before purchase.

Fasteners and supplies

The source lists 100 self-tapping trim screws, 2 1/2 in (63.5 mm) long. Keep spare screws: 100 is the published shopping quantity, not a verified complete fastening allowance. Add wood glue, abrasives and your chosen finish.

Do not shorten the 2×4 purchase length

Each 2×4 must yield three 28 1/2 in legs and one 12 1/2 in crosspiece: 98 in (2489.2 mm) before saw kerf and end trimming. An 8 ft board is too short for that layout.

For outdoor placement

Choose lumber, glue, fasteners and finish rated for the intended exposure. The source allows 2×2 furring strips; select sound, straight pieces and check their actual dimensions.

Read the whole sequence before starting. Label parts as you cut, then dry-fit each assembly before fastening.

Basic tools from the source

Tape measure, square, safety glasses, hearing protection, drill, compound miter saw and sander.

Useful additions

Pencil, clamps, a level work surface, suitable drill and driver bits, dust protection and scrap spacer blocks. A pocket-hole jig is optional for joining the tabletop boards; it is not required for the basic build.

Repeat cuts with care

The 23 short 2×6 pieces share one length. A securely clamped stop block can improve consistency. Follow the saw maker’s safe stop-block setup, support long stock and allow for the blade kerf. Check the first cut before repeating it.

Work safely

Clamp work before drilling or cutting. Keep hands outside the tool manufacturer’s danger zone and isolate power before adjustments. Use appropriate dust control, eye and hearing protection. Ask for help when turning the long frame over.

How to read the sketches

Expressive lines show form and assembly, not machining tolerances. The warm wood and mustard accents are visual cues, not a required finish. Use written dimensions and measured stock; never scale a length from the drawing.

Source lengths in inches and millimeters. Check every first cut.

C has angled ends

Cut both ends 24° off square, parallel to one another. Measure 26 1/4 in (666.8 mm) from long point to short point. If the frame size changes, fit each brace to its opening.

Allocate the 23 B pieces before assembly

Use 7 for the frame: 4 end crosspieces and 3 center crosspieces. The other 16 are shelf slats: 4 per bay at each of the two shelf levels.

Nominal labels are shopping names, not finished dimensions. These are typical dry, surfaced sizes.

Keep the broad crosspiece faces horizontal

Lay B and D flat, 1 1/2 in (38.1 mm) thick vertically. Stand all six A legs upright with their broad faces in the console’s long-side plane.

Three heights and two bays

Set lower crosspiece undersides 1 1/2 in (38.1 mm) above the feet. Keep both vertical openings 11 1/4 in (285.8 mm) clear. Twelve E rails join front and back at three heights in both bays.

Calculated checks for standard stock

The base is 70 1/2 × 15 1/2 in (1790.7 × 393.7 mm). Centering the top gives 1 1/2 in (38.1 mm) at each end and 1/2 in (12.7 mm) at front and back. These checks are derived from typical actual sizes, not separate source dimensions.

25.4 mm = 1 in. Metric values round half up to 0.1 mm. Use one unit system.

A × 4 / B × 4

Set the frame

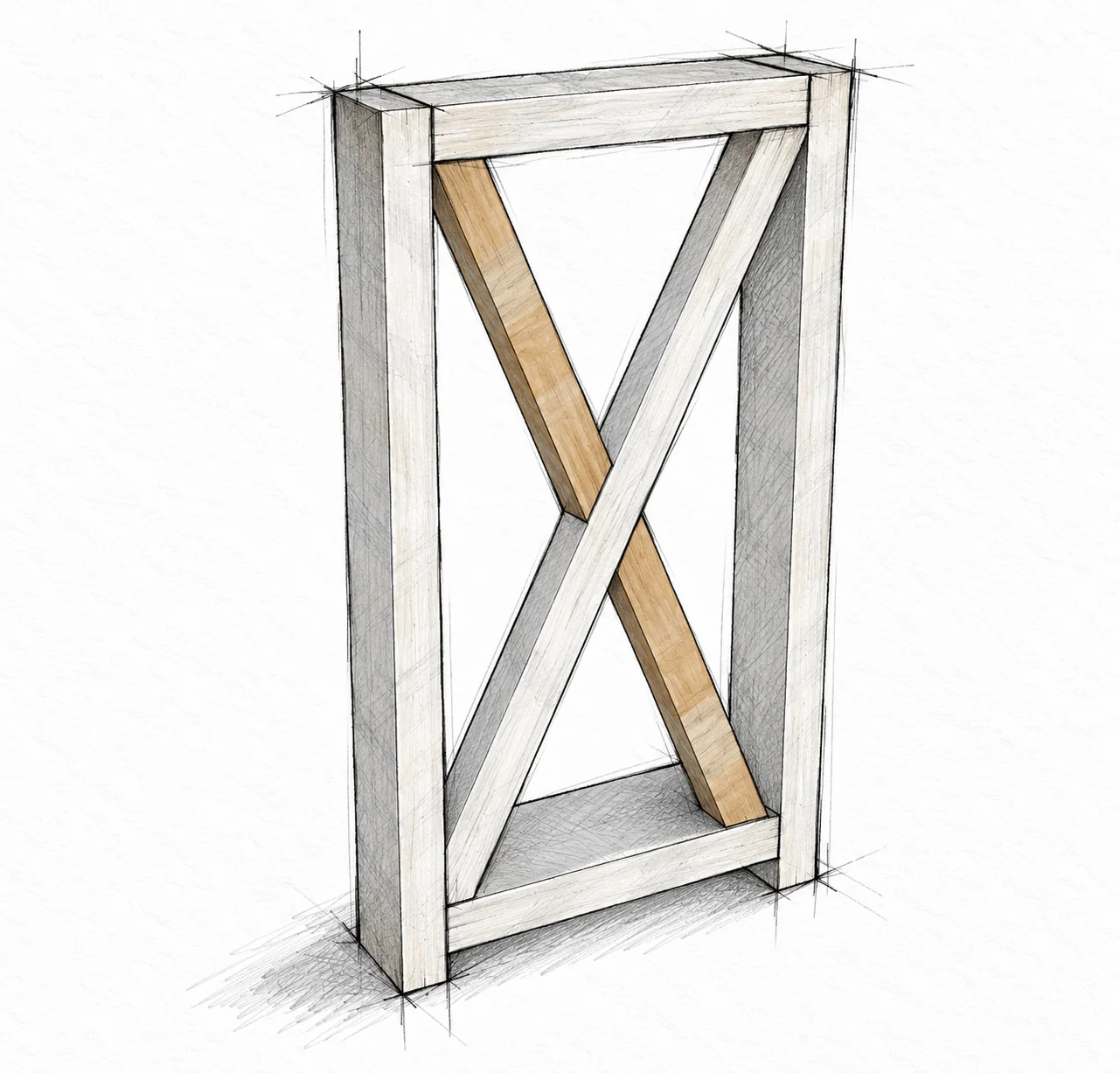

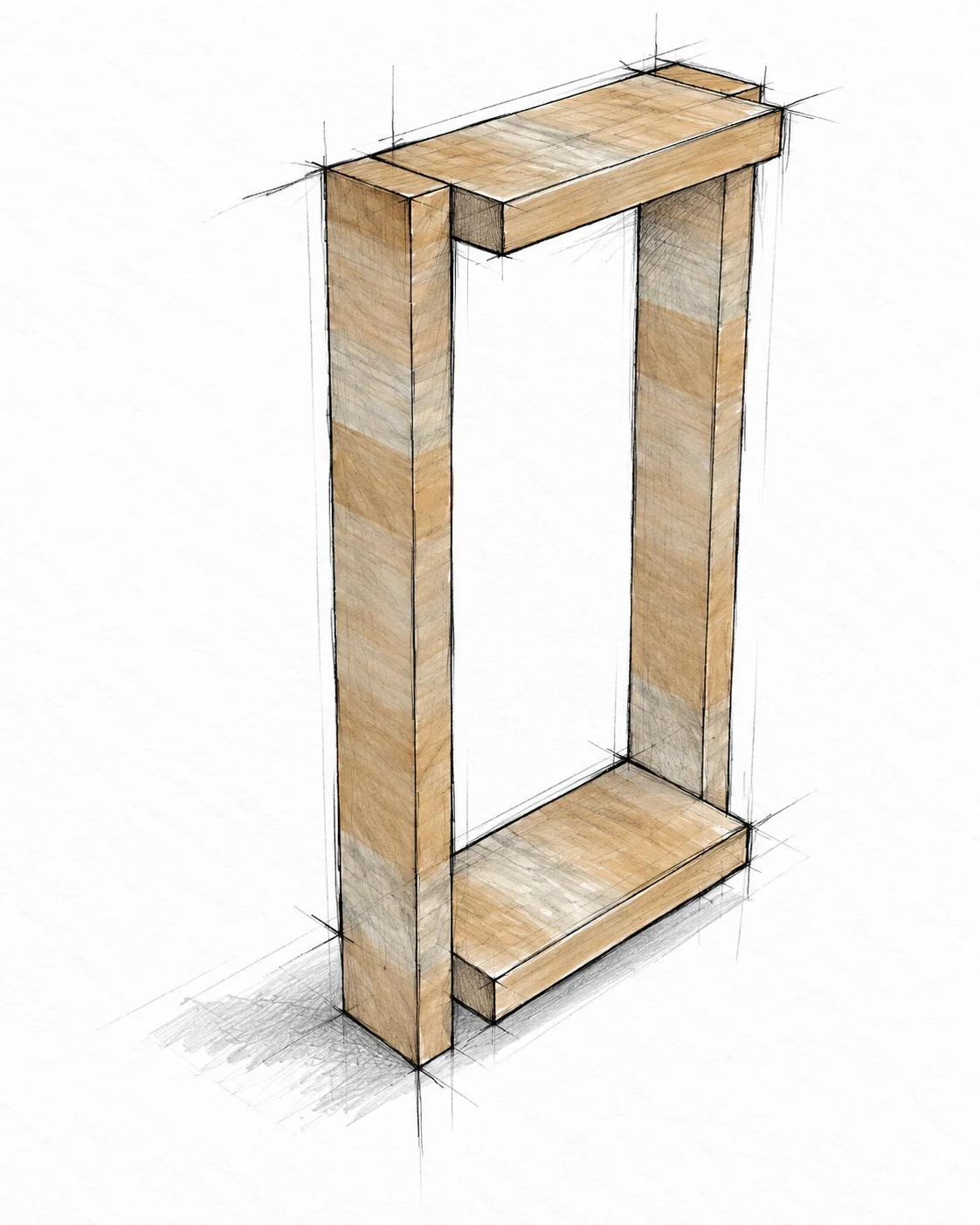

Use two legs A and two B crosspieces per end. Lay the B pieces flat, with their broad faces horizontal. Keep the top crosspiece flush with the leg tops.

Set the lower shelf height

Support the lower B on a 2×2 scrap: its underside is 1 1/2 in (38.1 mm) above the feet. Keep the end crosspieces flush outside, projecting inward.

Clamp and fasten

Square the assembly. Apply glue and use two 2 1/2 in (63.5 mm) self-tapping screws at each joint. Make the second end the same way.

BEFORE YOU CONTINUE

Compare both end sets before the glue cures. The crosspieces must be level and their heights must match.

C × 4 / Two C blanks per end

Dry-fit both diagonals

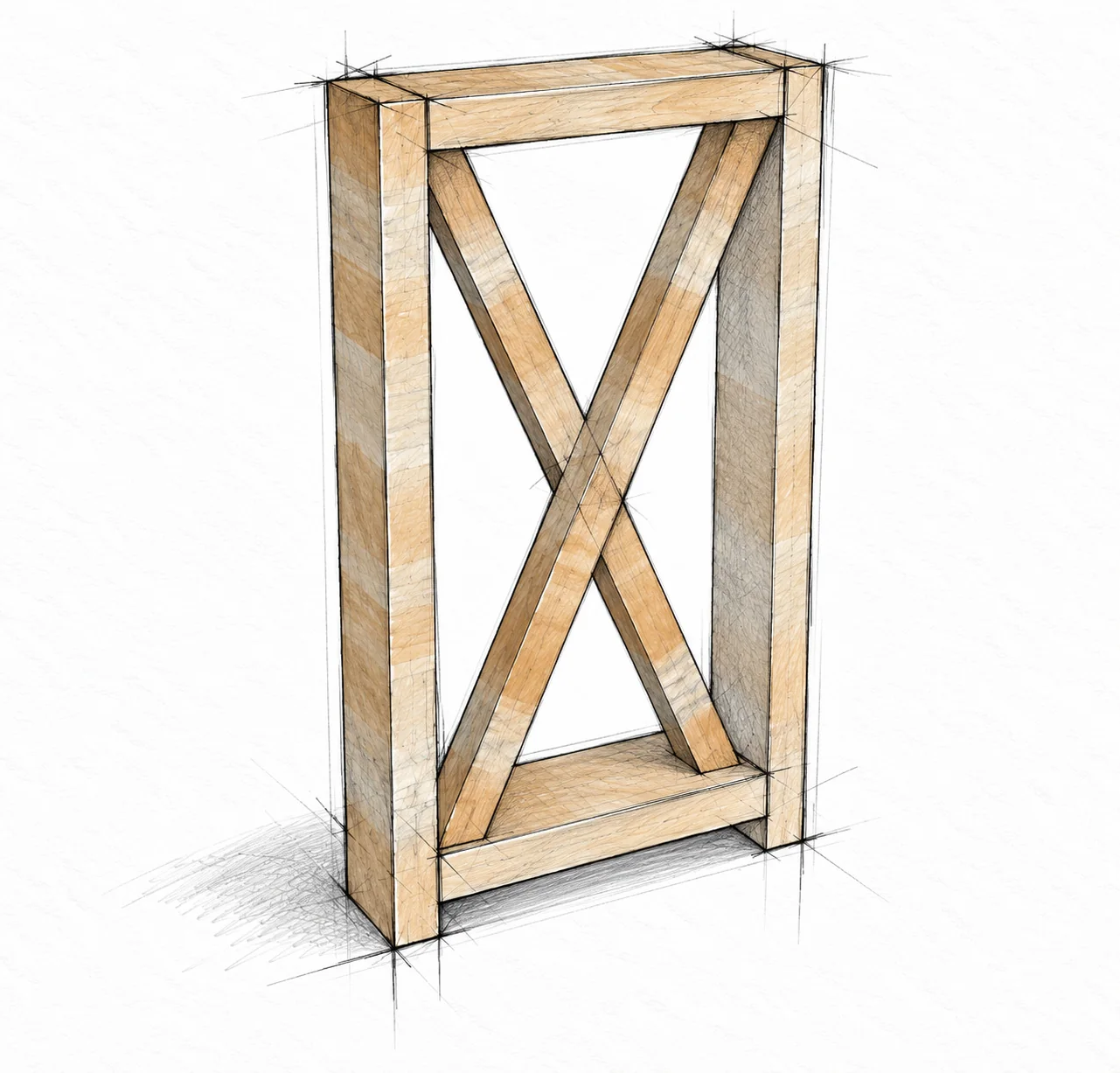

Put two C blanks across one short-end opening to form an X. Each blank has parallel 24° ends and a 26 1/4 in (666.8 mm) long-point-to-short-point length.

Mark the crossing

Trace the overlap on both blanks. Keep track of the top, bottom and marked faces so you can return every piece to the same position.

Cut only one blank

Leave one diagonal continuous. Remove the marked overlap from the other to create two fitted pieces. Test-fit, then repeat for the other end.

BEFORE YOU CONTINUE

Each completed X uses three pieces: one continuous diagonal and two short pieces. This is not a half-lap joint.

One continuous diagonal + two fitted pieces per end

Start with the full diagonal

Fit the intact C piece into the end frame first. Check that it seats without forcing the frame out of square, then glue and screw it in place.

Add the lower piece

Align the lower cut piece to the pencil marks on the continuous diagonal. Keep all faces in the same plane, then secure it.

Finish the upper piece

Fit the upper piece to the marks. The source allows slightly angled screws, or glue and clamps here: the middle crosspiece added next also secures the X. Repeat at the other end.

BEFORE YOU CONTINUE

X details belong only at the two short ends. Keep both long faces open; check for split brace ends before continuing.

D × 2 / One middle crosspiece per end

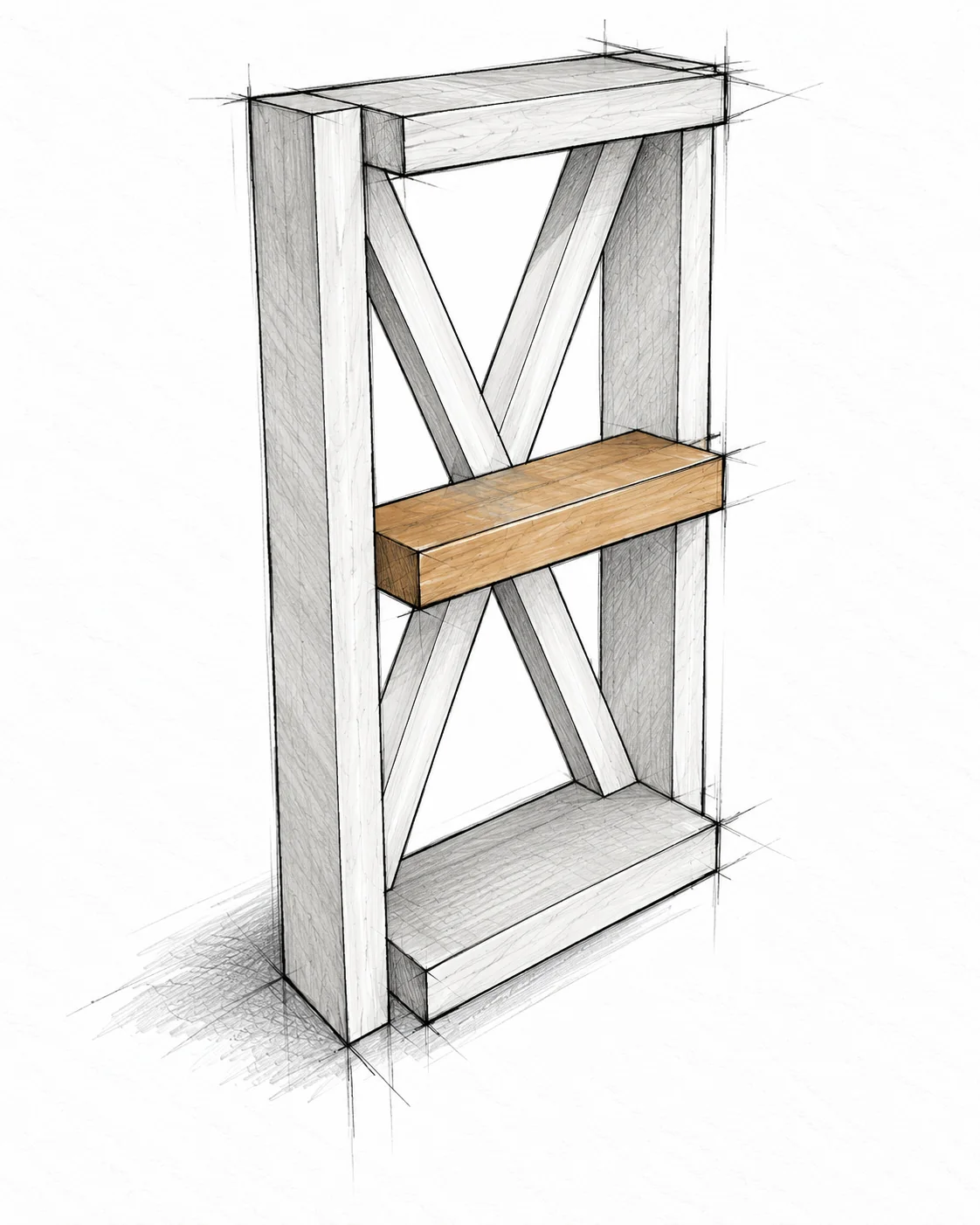

Position the 2×4

Lay D flat inside each end frame. Leave 11 1/4 in (285.8 mm) clear above the lower crosspiece and below the upper crosspiece.

Keep the inward edge aligned

The middle 2×4 sits inward, with its inner edge aligned to the inner edge of the lower 2×6. Do not center it across the leg width.

Secure the shelf and X

Glue the joints and fasten D to the legs with 2 1/2 in (63.5 mm) screws. Also drive screws through the outside of the X into D. Check the screw path before driving.

BEFORE YOU CONTINUE

Both middle supports must match in height. Keep D square to the legs and leave no screw tips protruding.

A × 2 / B × 3

Begin upside down

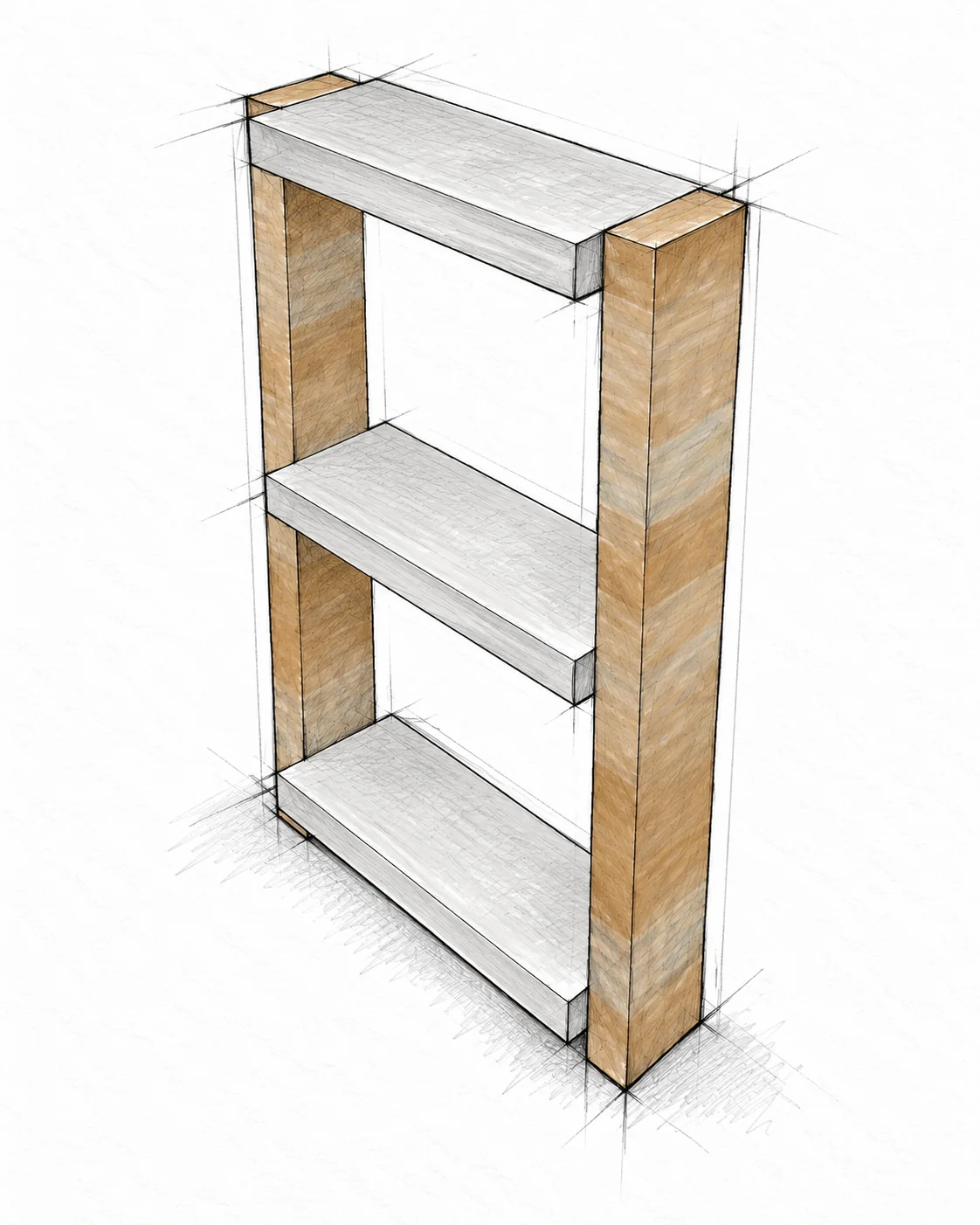

Join both legs to the top B crosspiece with glue and screws. Keep all top edges flush. Center B across the leg width so it projects 1 in (25.4 mm) into each bay.

Add the lower crosspiece

Turn upright. Use a scrap of 2× material to hold the bottom B 1 1/2 in (38.1 mm) above the feet; keep its projection equal on both sides.

Add the middle crosspiece

Turn the assembly onto its side. Position the last B with 11 1/4 in (285.8 mm) clear openings above and below. Square it to the legs before fastening.

BEFORE YOU CONTINUE

There is no center X. Unlike the end middle supports, all three center crosspieces are 2×6.

E × 12 / Two end sets + one center set

Stand and align the assemblies

Glue and join all twelve rails

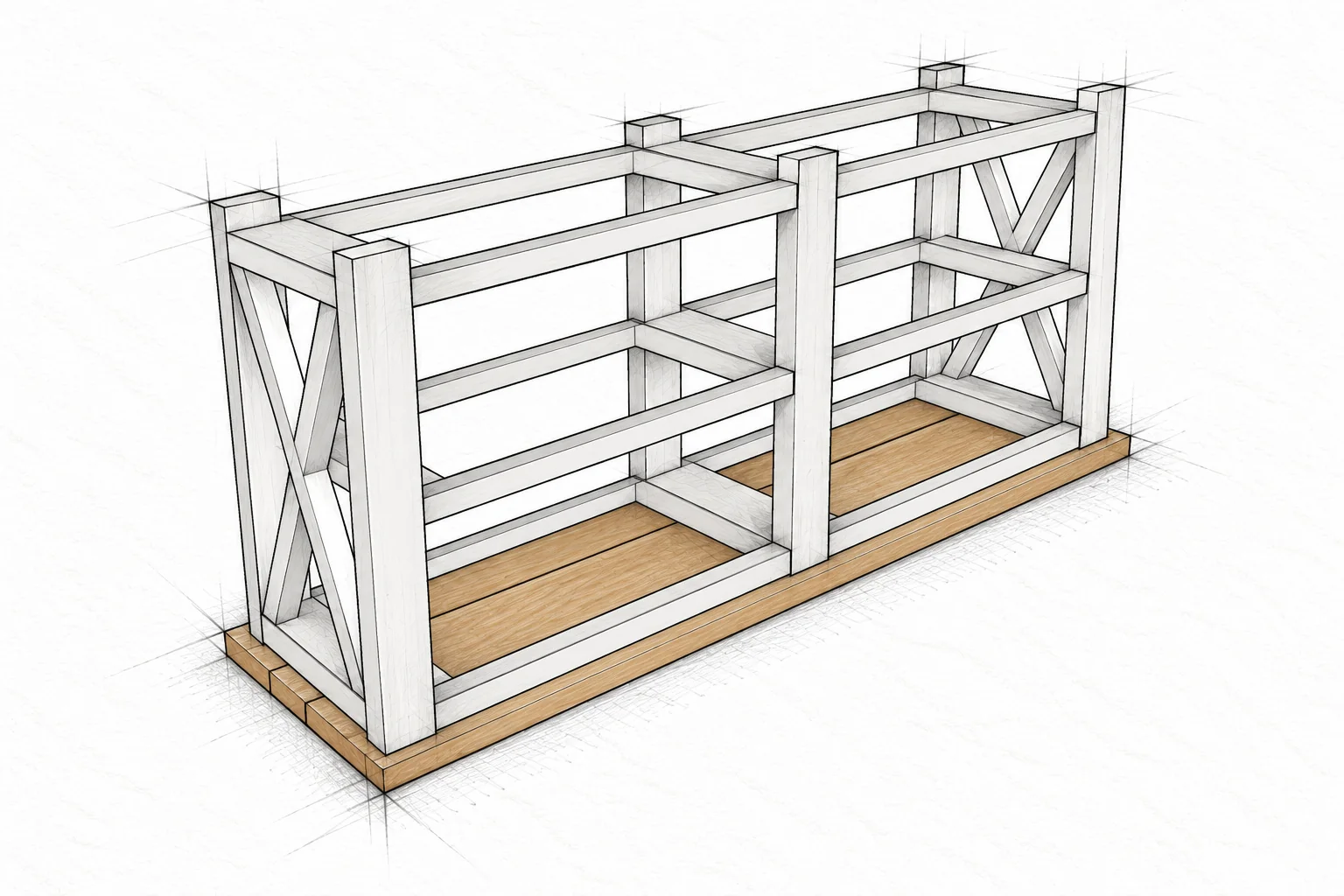

Use a flat, level work surface, not a sloped garage floor. With help, stand the end and center sets about 30 in (762.0 mm) apart. The E rails establish the bay spacing.

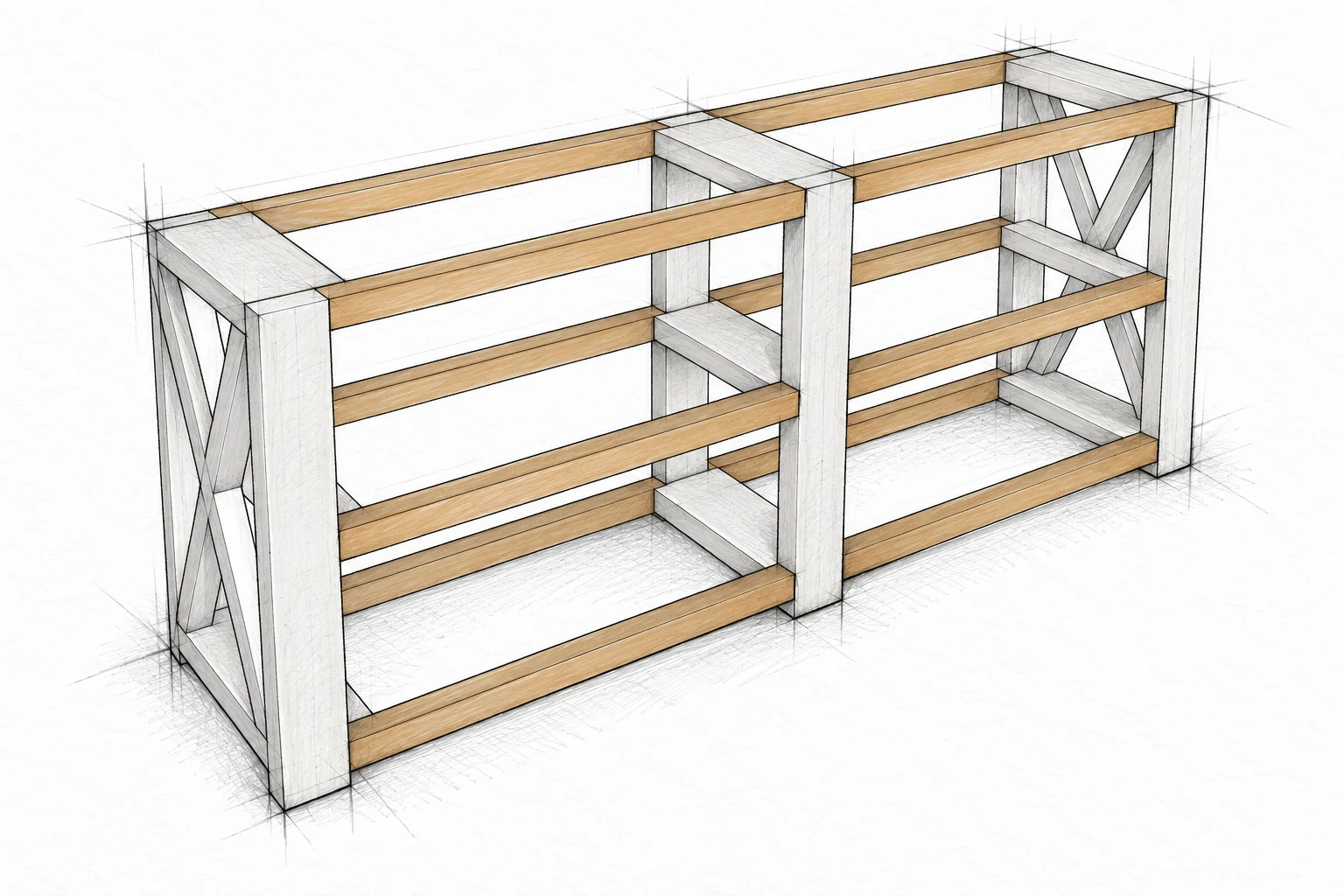

Fit front and back rails at the top, middle and bottom of each bay, flush with the corresponding crosspiece surfaces. Use ample glue. Drive 2 1/2 in (63.5 mm) screws at a slight angle into the crosspieces, as the source directs.

BEFORE YOU CONTINUE

Count 12 rails. Check square at both bays and confirm that all six feet contact the level surface without rocking.

F × 3 / Fasten from underneath

Lay out the tabletop

Center and fasten the base

Put the three F boards face down on a protected, flat surface with their ends aligned. If you have a pocket-hole jig, you may join the boards first; the source makes this optional.

With help, lower the inverted frame onto the boards. Center it in both directions, then attach from below with 2 1/2 in (63.5 mm) screws. Check screw paths and penetration so no point reaches the finished top face.

BEFORE YOU CONTINUE

For standard stock, check 1 1/2 in (38.1 mm) end overhangs and 1/2 in (12.7 mm) front/back overhangs. These are calculated checks.

B × 16 / Four slats per bay at each shelf level

Dry-lay one bay at a time

Space and secure

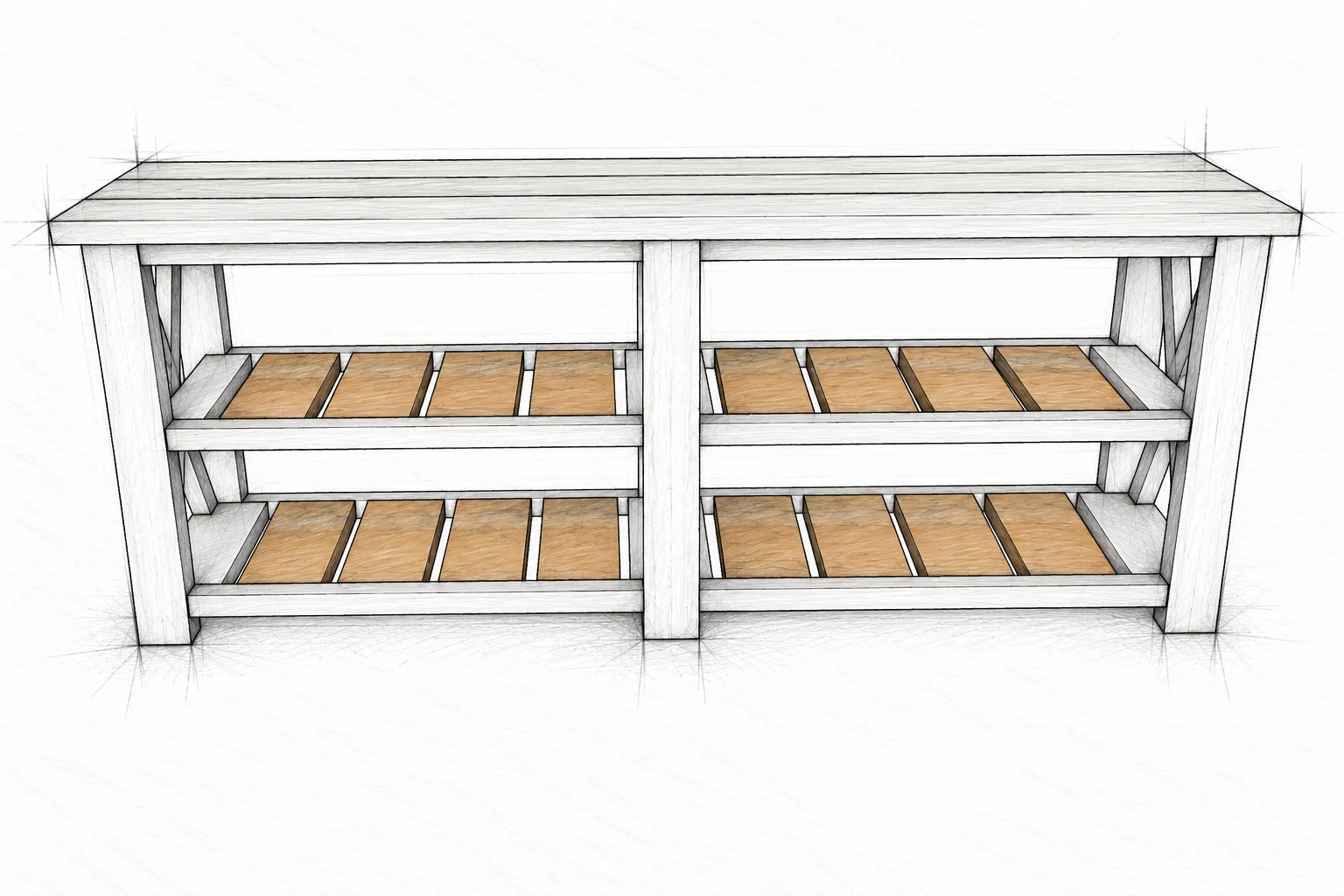

With help, turn the console upright. Place four B slats in each bay on both shelf levels. The 12 1/2 in (317.5 mm) length runs front to back; the broad faces lie horizontal.

Use 1 in (25.4 mm) spacer blocks between slats. With standard stock, leave the same gap at each bay boundary. Keep slats flush with the shelf frame and fasten with two 2 1/2 in (63.5 mm) screws per joint. Repeat all four bays.

BEFORE YOU CONTINUE

Count 16 added slats: eight on each level. Each slat has two end joints, so these slats alone use 64 screws at two per joint.

The cover shows a charcoal base and warm wood top. Choose a compatible finish system for the actual location.

Prepare the surface

Inspect all joints, soften sharp edges and sand with the grain. Remove dust thoroughly. Test the full finish on an offcut first and follow the product maker’s preparation, ventilation and safety directions.

Interior paint

Fill exposed holes, let filler dry, then sand smooth. Remove dust and let the wood dry. Apply primer or a suitable paint-and-primer system. Sand between coats only where the product directs.

Interior stain

Sand and clean first. Apply stain with the grain, then remove excess as directed. Fill visible holes afterward with a color-matched filler if desired. Protect with a compatible clear topcoat and allow full cure before use.

Exterior color or stain

Select an exterior coating suitable for the wood and exposure. The source suggests a deck/fence product: opaque for solid color or semi-transparent for a stained look. Follow its preparation, coat, drying and cure schedule.

Final check and care

Check all six feet, frame squareness, shelves, loose joints, splits and exposed screw tips. No tested load rating is provided: do not use the console as a seat or step. Recheck joints and finish periodically.

Keep this page with the guide. Read the original plan and its eight diagrams before building.

Original furniture design

Ana White, Farmhouse Console Table (Beginner - Indoor/Outdoor). The original page supplies the shopping and cut lists, dimensions and eight assembly stages. It also credits reader Jessica’s photographed build.
